MathViz

• github.com/JustinLove/mathviz

DESCRIPTION:

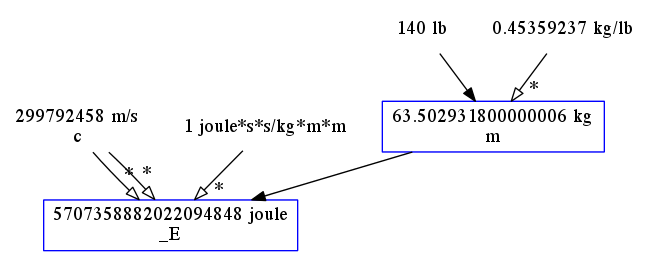

Turn simple equations (a = b * c) into GraphViz dot files showing relationships, values, and units.

FEATURES/PROBLEMS:

• Adds one method to Object (by way of Graphable) and several to Numeric (by way Measurable, Unit, and NumericExtensions) If you use units of measure, each unit will appear on Numeric via module Unit.

• MathViz produces textual .dot files. You will need a viewer which supports dot files directly, or Graphviz to convert them to images yourself.

SYNOPSIS:

require 'mathviz'

# No units are provided by default.
# You can also use 1.unit(:m).per.unit(:s) etc.
module MathViz::Units
  new_units :m, :s, :kg, :lb, :joule
end

MathViz.new {
  # Alternate form: MathViz.new('optional_output_filename', binding_object)

  m = 140.lb * 0.45359237.kg.per.lb
  c = 299_792_458.m.per.s
  # capitalized values are constants in ruby, so we need the underscore
  _E = (m * (c * c)) * 1.joule.per.kg.m.m.per.s.s

  binding # Don't forget to return the binding
}.dot # Required to produces the actual .dot file

REQUIREMENTS:

• GraphvizR (aka graphviz_r)

• Graphviz - www.graphviz.org/

INSTALL:

• sudo gem install mathviz

LICENSE:

Creative Commons Attribution-Share Alike 3.0 Unported Licence creativecommons.org/licenses/by-sa/3.0/
